12V 24V 12W 24W Interchangeable Plugs Power Adapter Wall Mount
KSPOWER 24W Series Power Adapter with Multiple Certifications
This versatile power adapter features interchangeable plugs and meets UL, FCC, CE, KC, PSE, and SAA certification standards for global compatibility and safety.
Technical Specifications
| Input |
AC100-240Vac, 50/60Hz or 220-240Vac, 50/60Hz |
| Output |
DC5V-36V, 0.01A-3A, 24W Max |
| Output Mode |
Constant voltage |
| Protections |
Short circuit/current/voltage |
| Energy Efficiency |
DOE, CEC, ERPII MEPS GEMS |
| Working Environment |
0-40℃, 5%-95%RH |
Plug Options
AC plugs: US, EU, UK, AU, Korea, Japan, China
DC plugs: 5.5*2.1/5.5*2.5/4.0*1.7/3.5*1.35/2.5*0.7/XLR/

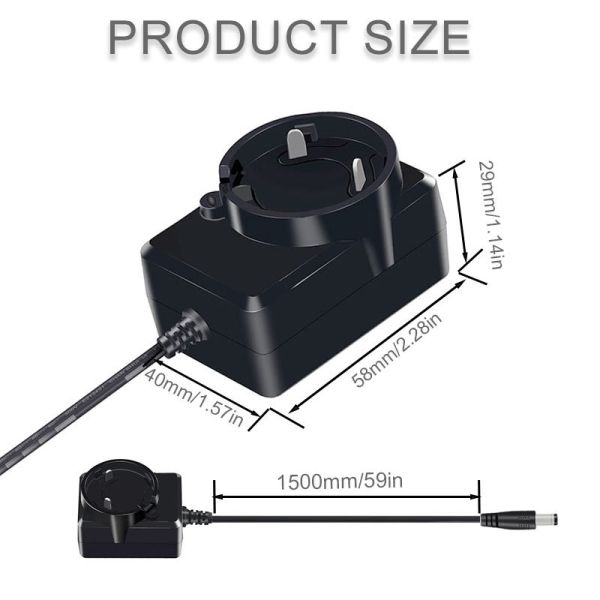

Dimensions
Key Features
- Multiple AC plugs (plug kit sold separately)
- Universal AC input voltage
- Single channel & Constant Voltage power supply
- 100% Full load burn-in test
- Pass LPS (limited power source)
- 3 Years Warranty
- Class II power (without earth pin)
- Compact size, fully enclosed PC plastic case
- Energy Efficiency: DOE/CEC/ErP/MEPS/NRcan Level VI
- Safety automatic protections for over current, over load and short circuit
Note: Accept LOGO/color/package/case customization, OEM and ODM service
FQA
Q1: What is the maximum output power of this interchangeable plug adapter?
A: Max output power 24W, constant‑voltage DC output 5‑36V, 0.01‑3A.
Q2: What safety protections does this power adapter have?
A: Built‑in automatic over‑current, over‑voltage, overload and short‑circuit protection, passes LPS limited power source requirements.
Q3: Which certifications are available for this unit?
A: UL, cUL, FCC, GS, CCC, CQC, KC, PSE, UKCA, SAA, RCM, RoHS, CB and other global safety certifications.
Q4: Are interchangeable AC plugs included?
A: AC plugs for US, EU, UK, AU, KR, JP, CN are available. Plug kit is sold separately.
Q5: What DC plug options can I select?
A: Supports 5.52.1, 5.52.5, 4.0*1.7, XLR, and more custom DC connectors are supported.
Q6: What energy‑efficiency standards does it meet?e
A: Complies with DOE, CEC, ErP II, MEPS, GEMS, NRcan Level‑VI energy‑efficiency norms.
Q7: What are the working environment requirements?
A: Operating temperature 0‑40℃, relative humidity 5%‑95% RH.
Q8: Is this a Class II power supply?
A: Yes, Class II design without earth pin, compact fully‑enclosed PC plastic housing for wall‑mount installation.
Q9: What applications is this adapter suitable for?
A: Ideal for CCTV & DVR, multiple‑spec LED strip lights, routers, monitors, external hard drives, aquarium lights, printers and other low‑voltage indoor devices.
Q10: What is the warranty term?
A: 3‑year warranty is provided.
Q11: Do you support OEM & ODM customization?
A: Yes, custom logo, housing color, casing and packaging are available.
Why choose us?
Strict Pre‑shipment Quality Control
Every adapter completes 100% full‑load burn‑in testing to guarantee stable performance under continuous working conditions.
Interchangeable‑Plug Wall‑mount Solution for Global Markets
Wall‑mount main body works with multiple regional AC plugs. Reduce your inventory SKUs and simplify multi‑country order management.
Wide Voltage Output Flexibility
Covers common 12V / 24V and other DC voltage requirements, fits surveillance, LED lighting, consumer electronics and DIY projects.
Full‑range Global Safety Approvals
Complete certification portfolio helps your products smoothly enter different regional markets.
Space‑saving Wall‑mount Structure
Compact fully‑enclosed Class II PC housing, easy for end‑device integration and wall installation.
Flexible Brand Customization Service
One‑stop OEM / ODM service covers logo, housing appearance and packaging to build your branded power adapters.
Applications
- Security and surveillance devices: CCTV Security Camera DVR
- RGB & Single Color 2835 3528 5050 5630 5730 DC 5V/6V/12V/24V Low Voltage Flexible LED Rope Strip Lights
- External hard drives, keyboards, microphones, aquarium lights, electric scales
- Record players, routers, DVD players, monitors, SDR projects, printers and other 10W/12W devices
Certifications
UL, cUL, FCC, GS, CCC, CQC, KC, PSE, UKCA, SAA, C-tick, RCM, RoHS, CB etc.
