18W PSE Certified Wall Adapter
Professional 18W PSE certified wall adapter designed for reliable power supply applications.
Technical Specifications
Output Mode: Constant voltage
Input Voltage: AC100-240Vac, 50/60Hz or 220-240Vac, 50/60Hz
Output Range: DC5V-36V, 0.01A-3A, 24W Max
Protections: Short circuit, over current, over voltage
Energy Efficiency: DOE, CEC, ERPII MEPS GEMS
Operating Environment: 0-40℃, 5%-95% RH
Certifications: UL, cUL, FCC, GS, CCC, CQC, KC, PSE, UKCA, SAA, C-tick, RCM, RoHS, CB
Regional Specifications
| Country |
Max. Watt |
Voltage Range |
Current Range |
Safety Standard |
| US |
24W |
DC5-36V |
0.01A-3.0A |
EN62368/UL 1310 |
| EU |
24W |
DC5-36V |
0.01A-3.0A |
EN62368 |
| UK |
24W |
DC5-36V |
0.01A-3.0A |
EN62368 |
| AU |
24W |
DC5-36V |
0.01A-3.0A |
EN62368 |
| KR |
24W |
DC5-36V |
0.01A-3.0A |
EN62368 |
| JP |
24W |
DC5-36V |
0.01A-3.0A |
EN62368 |
| CN |
24W |
DC5-36V |
0.01A-3.0A |
CCC-GB 4943.1-2022/CQC-GB 4343.1-2018;GB/T 4343.2-2020 |
Key Features
- Single channel constant voltage power supply
- 100% full load burn-in testing
- Passes LPS (limited power source) requirements
- 3-year comprehensive warranty
- Class II power design (without earth pin)

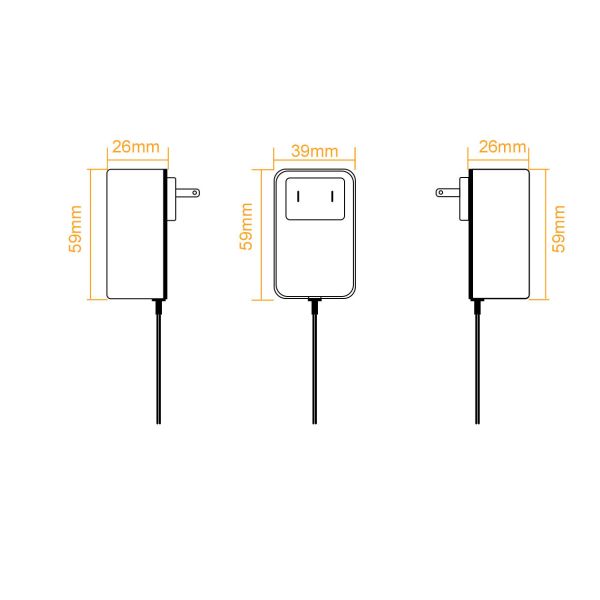

- Compact size with fully enclosed PC plastic case
- Fast startup time: <3 seconds
- High energy efficiency: DOE/CEC/ErP/MEPS/NRcan Level VI
- Automatic safety protections for over current, over load, and short circuit
FQA
Q1: What certifications does this 18W wall adapter own?
A: It comes with PSE plus other global certifications, meeting requirements for worldwide sales.
Q2: What output features does it have?
A: Single‑channel constant‑voltage, multi‑voltage output, max 18W for different electronic equipment.
Q3: What safety protections are equipped?
A: Short‑circuit, over‑current, over‑voltage, overload protection. Passes LPS standard, 100% full‑load burn‑in tested.
Q4: Are different plugs and DC connectors available?
A: Yes, various regional AC plugs and DC connectors are optional, custom connectors are supported.
Q5: What is the usage condition?
A: Indoor‑use only, non‑waterproof, operating temperature 0‑40℃.
Q6: What about warranty and customization?
A: 3‑year comprehensive warranty. OEM & ODM are available for labels, packaging and case design.
Why choose us?
PSE & Global Certifications
18W wall adapter with PSE and full‑range international certifications, ready for global market deployment.
2. Flexible Multi‑Voltage Constant‑Voltage Output
Single‑channel constant‑voltage design, supports multiple DC voltage options to fit various electronic devices.
3. Complete Safety Protection
Built‑in short‑circuit, over‑current, over‑voltage and overload protection. Meets LPS requirement. Class II power design without earth pin. 100% full‑load burn‑in test for stable performance.
4. High‑efficiency & Compact Structure
Complies with Level VI energy‑efficiency standards. Fast startup within 3 seconds, compact fully‑enclosed PC plastic case for indoor‑only use.
5. Rich Options & Custom Support
Multiple regional AC plugs and diverse DC connectors optional. 3‑year comprehensive warranty. Support OEM / ODM for labels, packaging and housing customization.
Compatible AC Plugs
US, EU, UK, AU, Korea, Japan, China, Brazil, India, Argentina and other regional standards
Available DC Connectors
- 5.5*2.1mm
- 5.5*2.5mm
- 4.0*1.7mm
- 3.5*1.35mm
- 2.5*0.7mm
- XLR
- Other customizable options
Applications
Ideal for electric grill ovens, LED strips, audio amplifiers, wireless routers, and audio/video power supplies.
Not waterproof - indoor use only.
Customization Services
We offer comprehensive OEM and ODM services with custom labeling, packaging, and case design options available to meet your specific requirements.
